Due Effe SpA produces diaphragm vacuum pumps equipped with a 0.37kW three-phase asynchronous motor.

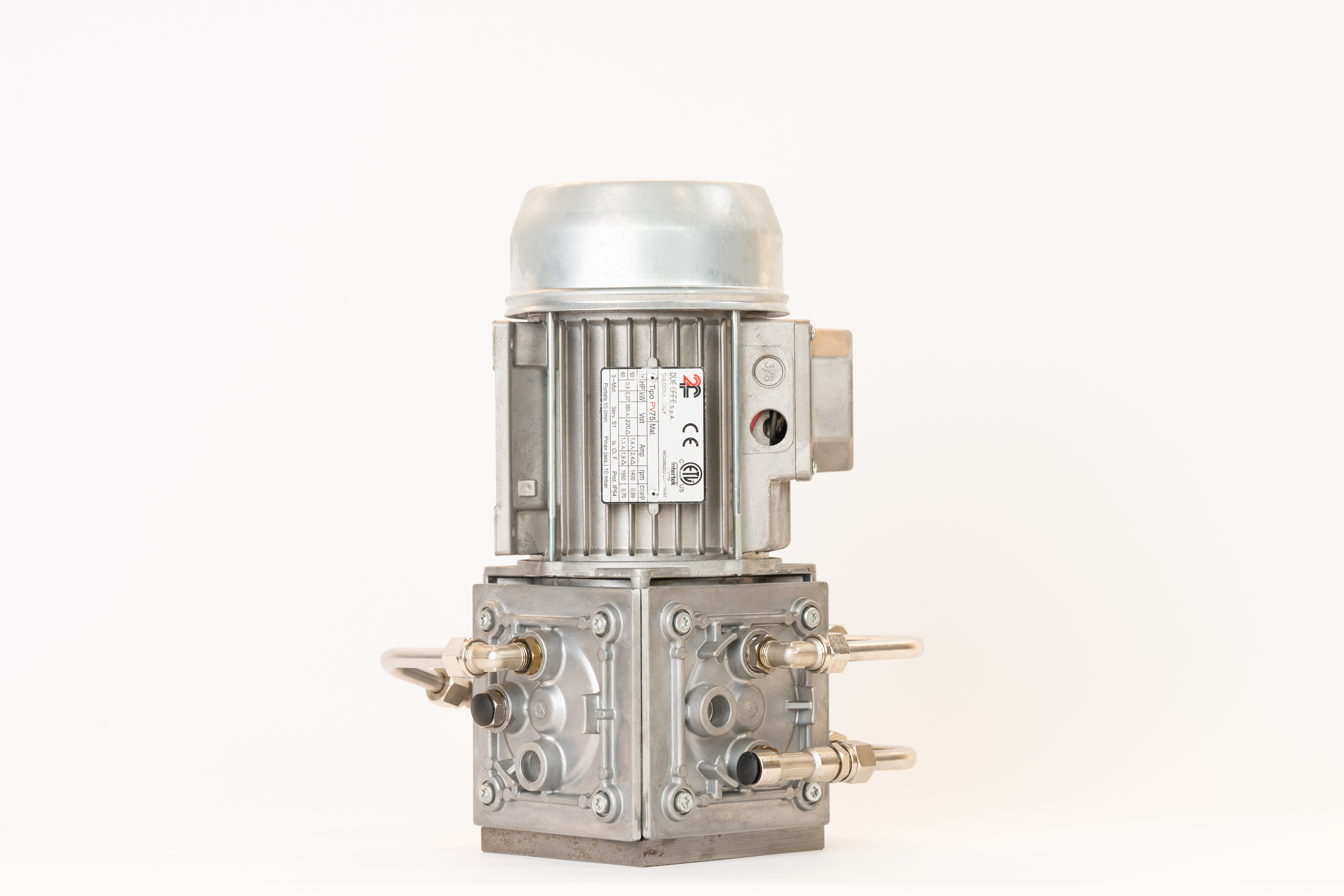

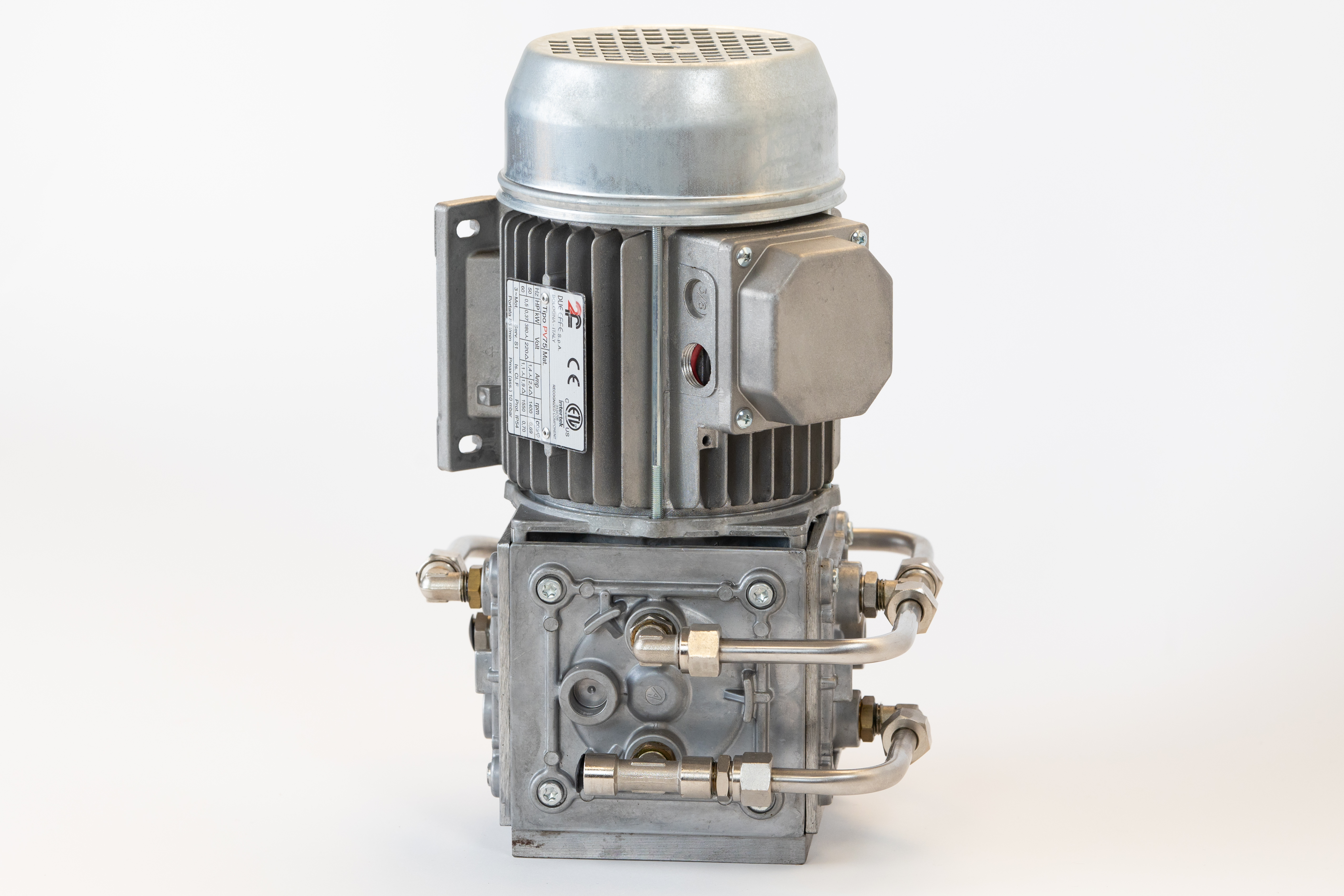

The PV75 vacuum pump is a 4-cylinder diaphragm pump, available in various configurations to achieve different nominal flow rates and final vacuum values.

Technical features:

• Nominal flow rate: 85 litres per minute
• Power Hp 0.50 - Hz 50/60
• RPM 1400/1750
• Class F insulation
• Maximum absolute pressure: 10 mbar
• Low noise level
• Available in different configurations for different final vacuum and flow rate requirements
• Fields of application: vacuum distillation in dry cleaning machines, machine tools, rotary evaporators, electromedical laboratories
• Available with ETL approval for the United States and Canada
